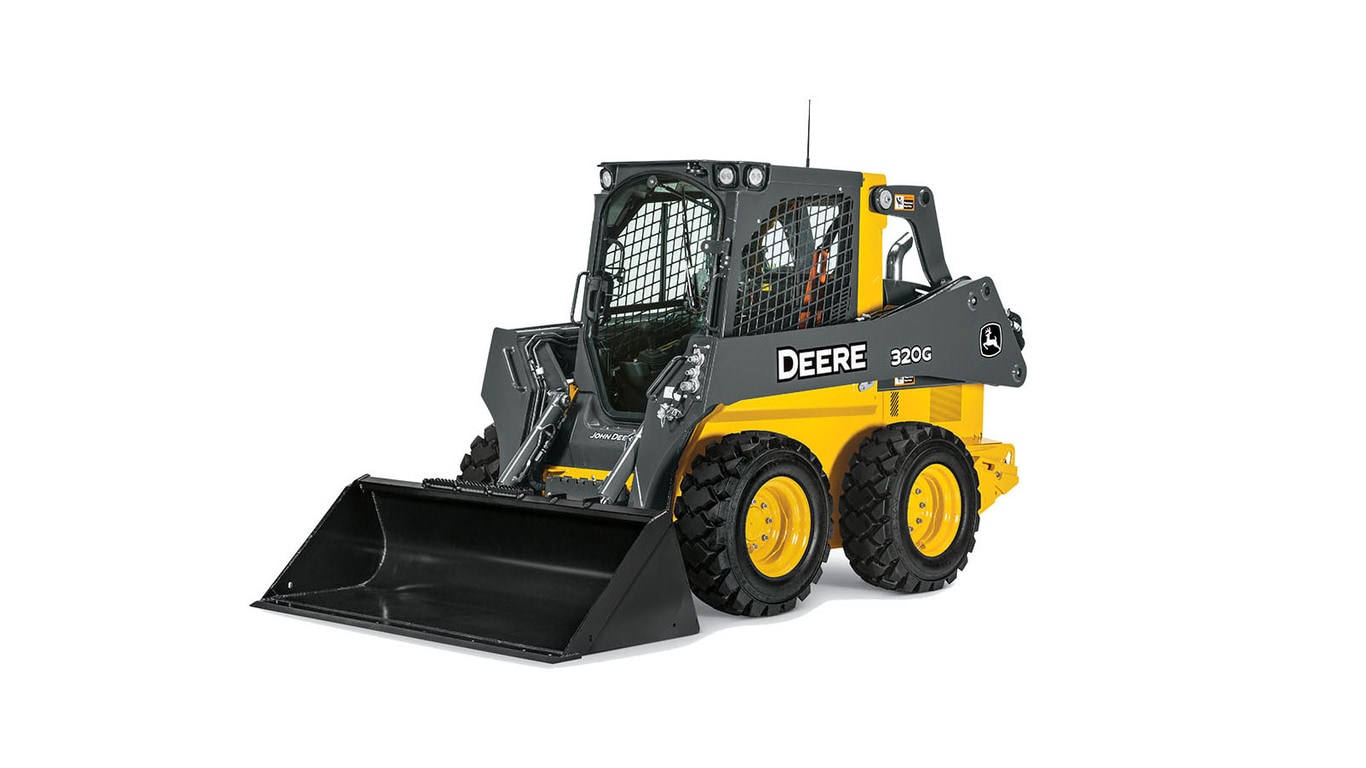

John Deere 320G

DEBUG Ind: Construction, Cat: Loaders, SubCat: Skid Steers, SubSubCat: 320g Skid Steer
Feature Overview
John Deere 320G
  • Gross Power: 51.7 kW (69 hp)
  • Net Power: 49.4 kW (66 hp)
  • Rated Operating Capacity: 994 kg (2,190 lb.)
  • Operating Weight: 3246 kg (7,150 lb.)
Feature Overview
John Deere 320G
  • Gross Power: 51.7 kW (69 hp)
  • Net Power: 49.4 kW (66 hp)
  • Rated Operating Capacity: 994 kg (2,190 lb.)
  • Operating Weight: 3246 kg (7,150 lb.)
Features

Engine

  • Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.

  • Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
  • Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
  • Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
  • Redesigned cab features an improved door seal with integrated chinstrap and glove-friendly removable side windows.

  • Industry-leading bucket breakout forces and auxiliary flow

  • Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
  • Optional JDLink© provides machine data and health alerts to help you decrease costly downtime.

With the universal Quik-Tatch,© you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.

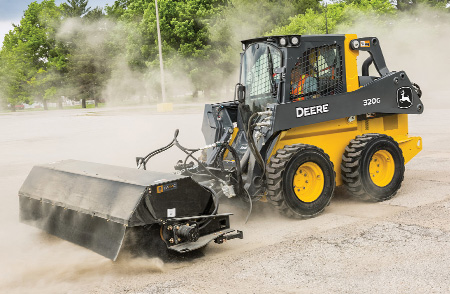

John Deere 320G equipped with an angle broom John Deere 320G equipped with an angle broom

With over 100 attachments offered in the John Deere portfolio you can make the most out of your skid steer by equipping it with a number of popular attachments.

  • Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments and optional high-flow hydraulics lets operators add things like snow blowers, rotary cutters, or brooms
  • Optional electrically actuated Quik-TatchTM enables some attachment connecting to take place within the cab reducing the need for exiting and re-entering the cab to manually connect attachments.
  • Creep control (offered within the Joystick Performance Package) allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds

For additional information on attachments and compatibility, check out the John Deere attachments guide


View of inside the cab View of inside the cab

To maximize productivity and comfort, an array of enhancements have been made to the spacious and comfortable cab on the mid frame sized machines to keep operators satisfied throughout the entire day.

  • The sealed and pressurized cab helps ensure that outside noise is reduced and also keeps the inside cleaner.
  • Optional air ride heated seat provides customers working throughout the cold winter months increased comfort and optional Bluetooth radio enables streaming of content from a cell phone.
  • Removable glass windows, from inside the cab, without the need for tools means that windows can be easily, quickly, and adequately cleaned to improve machine visibility
  • Multiple slip-resistant steps and ergonomically placed handles mounted on the interior and exterior of the machine result in a safer and more natural way to get in and out of the cab

Deluxe light-emitting diode (LED) Lighting Package Deluxe light-emitting diode (LED) Lighting Package
Rearview camera display Rearview camera display
View out of the Rear of the Machine View out of the Rear of the Machine

Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness.



  • Optional deluxe LED lighting provides increased visibility early in the morning or at night over the standard halogen package
  • Clear sight from the seat under the boom arms to see the tires, even when the boom is down and great visibility to the cutting edges and Quik-Tatch© lock and unlock indicators
  • Rear view camera, low sloped hood and a high cross-tube on the upper-linkage result in unmatched rear visibility

Mid-Frame Skid Steers and Compact Track Loaders (CTL’s) offer ease of access to components for regular service or repair Mid-Frame Skid Steers and Compact Track Loaders (CTL’s) offer ease of access to components for regular service or repair

Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours

  • The hood tilts up for ground level access to the dipstick, fuel and fluid filler necks, filters, and see-through reservoirs.
  • The cab is able to swing up and out of the way in less than five minutes for wide-open drivetrain access. A single person is able to safely and efficiently lift the boom and lock it out, exit the machine, raise the cab, and remove the footwell.
  • Removable metal side panels on the left and rear are lightweight and perforated with handles at optimized lifting points.
  • The removal of the footwell with just six total nuts and bolts allows for easy cleaning of dirt and debris that enters the cab.
  • Optional JDLink© provides machine data and health alerts to help decrease costly downtime.

The 320G is a reliable machine with low owning and operating costs that also offers customers an array of productivity features for rental companies, landscapers, or contractors.



  • Increased bucket breakout forces result in better handling of pallets of pavers or other heavy materials in addition to helping heap the bucket with larger loads.
  • Optional ISO-H switchable controls with EH Joystick Performance Package that allows operators to choose the pattern they prefer
  • Differential steering allows the operator to maintain speed and traction when pushing through a turn
  • Standard two-speed drivetrain delivers travel speeds up to 12 mph for Skid Steers that allow operators to get from one side of the job to the other much quicker

Specs
DESCRIPTION
Lift Geometry Vertical
Fleet Management Yes
Precision Guidance No
Proximity Guidance No
DRIVELINE
Engine Manufacturer Yanmar
Engine Model 4TNV98C
Emission Rating Tier 4
Aspiration Naturally Aspirated
Displacement, ltr (Inches³) 3.3 (203)
Rated Engine Speed, rpm 2500
SAE Net Power, kW (hp) 49.4 (66)
SAE Gross Power, kW (hp) 51.7 (69)
Max. Gross Torque, Nm (lbf / ft) 241 (178)
Drive Chain Rating [ANSI] 80 - HD
Tire size - Standard 12 - 16.5 - 12 PR SKS
DIMENSIONS
Length - No Bucket, mm (inches) 2850 (112.3)
Length - With Bucket, mm (inches) 3460 (136.3)
Width - No Bucket, mm (inches) 1700 (67)
Overall Height, mm (inches) 2060 (81.1)
Ground Clearance, mm (inches) 240 (9.3)
Wheelbase, mm (inches) 1120 (44.2)
Rear Departure Angle, ° 28
Height to Hinge Pin, mm (inches) 3100 (122.2)
Dump Angle, ° 43
Dump Height - Maximum, mm (inches) 2480 (97.7)
Reach - Max Dump Height, mm (inches) 740 (29.2)
Rollback - Ground Level, ° 33
PERFORMANCE
Rated Operating Capacity - Optional Counterweight, kg (lbs) 1067 (2350)
Rated Operating Capacity, kg (lbs) 994 (2190)
Tipping Capacity (SAE), kg (lbs) 1989 (4380)
Axle Torque - Maximum, Nm (lbf / ft) 6771 (4994)
Speed - Maximum, kph (mph) 11.1 (6.9)
Speed - Maximum Option, kph (mph) 17.9 (11.1)
Breakout - Lift, kN (lbf) 16.5 (3725)
Breakout - Bucket, kN (lbf) 26.6 (6000)
Hydraulic Power, kW (hp) 28.842 (38.6)
Hydraulic Power - Option, kW (hp) 41.414 (55.5)
Pump Output, lt/min (gallons (US) / min) 78 (21)
Pump Flow - Option, lt/min (gallons (US) / min) 112 (30)
System Pressure, bar (PSI) 224.08 (3250)
DIMENSIONS
Length - With Bucket Foundry, mm (inches) 2460 (136.3)
Rear Departure Angle, Degrees 28
Dump Angle, Degrees 43
Dump Height - Maximum Foundry, mm (inches) 2480 (97.7)
Reach - Max Dump Height Foundry, mm (inches) 740 (29.2)
Rollback - Ground Level, Degrees 33
PERFORMANCE
Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) 1067 (2350)
Rated Operating Capacity - Foundry, kg (lbs) 994 (2190)
Tipping Load - Foundry, kg (lbs) 1989 (4380)
Breakout - Lift Foundry, kN (lbf) 16.5 (3725)
Breakout - Bucket Foundry, kN (lbf) 26.6 (6000)
DRIVELINE
Rated Speed, rpm 2500
